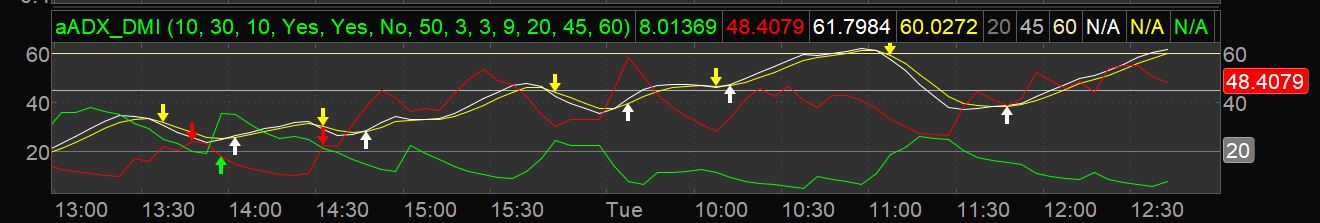

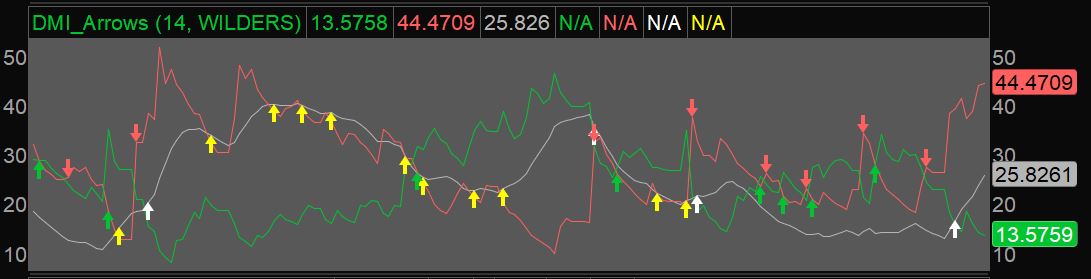

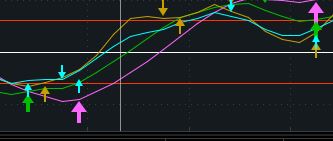

Can anyone help me with his? I want the indicator to plot an up or down arrow when ever the ADXAvg crosses ADX. And not a balloon but a print at the cross over location. Similar to the indicator picture below

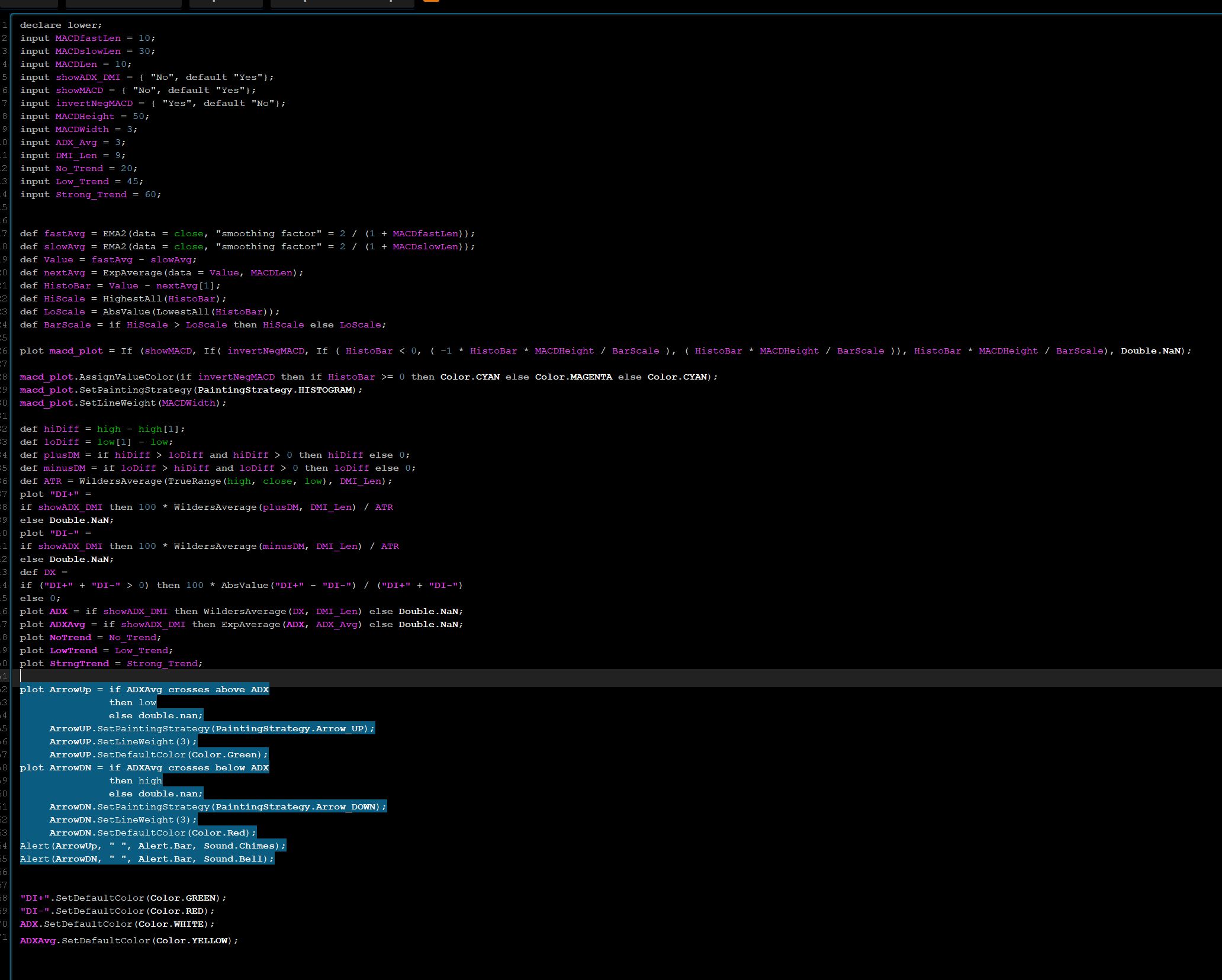

declare lower;
input MACDfastLen = 10;
input MACDslowLen = 30;
input MACDLen = 10;
input showADX_DMI = { "No", default "Yes"};
input showMACD = { "No", default "Yes"};
input invertNegMACD = { "Yes", default "No"};
input MACDHeight = 50;
input MACDWidth = 3;
input ADX_Avg = 3;
input DMI_Len = 9;
input No_Trend = 20;
input Low_Trend = 45;
input Strong_Trend = 60;


def fastAvg = EMA2(data = close, "smoothing factor" = 2 / (1 + MACDfastLen));
def slowAvg = EMA2(data = close, "smoothing factor" = 2 / (1 + MACDslowLen));
def Value = fastAvg - slowAvg;
def nextAvg = ExpAverage(data = Value, MACDLen);
def HistoBar = Value - nextAvg[1];
def HiScale = HighestAll(HistoBar);
def LoScale = AbsValue(LowestAll(HistoBar));
def BarScale = if HiScale > LoScale then HiScale else LoScale;

plot macd_plot = If (showMACD, If( invertNegMACD, If ( HistoBar < 0, ( -1 * HistoBar * MACDHeight / BarScale ), ( HistoBar * MACDHeight / BarScale )), HistoBar * MACDHeight / BarScale), Double.NaN);

macd_plot.AssignValueColor(if invertNegMACD then if HistoBar >= 0 then Color.CYAN else Color.MAGENTA else Color.CYAN);
macd_plot.SetPaintingStrategy(PaintingStrategy.HISTOGRAM);
macd_plot.SetLineWeight(MACDWidth);

def hiDiff = high - high[1];
def loDiff = low[1] - low;
def plusDM = if hiDiff > loDiff and hiDiff > 0 then hiDiff else 0;
def minusDM = if loDiff > hiDiff and loDiff > 0 then loDiff else 0;
def ATR = WildersAverage(TrueRange(high, close, low), DMI_Len);
plot "DI+" =
if showADX_DMI then 100 * WildersAverage(plusDM, DMI_Len) / ATR
else Double.NaN;
plot "DI-" =
if showADX_DMI then 100 * WildersAverage(minusDM, DMI_Len) / ATR
else Double.NaN;
def DX =
if ("DI+" + "DI-" > 0) then 100 * AbsValue("DI+" - "DI-") / ("DI+" + "DI-")
else 0;
plot ADX = if showADX_DMI then WildersAverage(DX, DMI_Len) else Double.NaN;
plot ADXAvg = if showADX_DMI then ExpAverage(ADX, ADX_Avg) else Double.NaN;
plot NoTrend = No_Trend;
plot LowTrend = Low_Trend;
plot StrngTrend = Strong_Trend;

plot ArrowUp = if ADXAvg crosses above ADX
then low
else double.nan;
ArrowUP.SetPaintingStrategy(PaintingStrategy.Arrow_UP);
ArrowUP.SetLineWeight(3);
ArrowUP.SetDefaultColor(Color.Green);
plot ArrowDN = if ADXAvg crosses below ADX
then high
else double.nan;
ArrowDN.SetPaintingStrategy(PaintingStrategy.Arrow_DOWN);
ArrowDN.SetLineWeight(3);
ArrowDN.SetDefaultColor(Color.Red);
Alert(ArrowUp, " ", Alert.Bar, Sound.Chimes);
Alert(ArrowDN, " ", Alert.Bar, Sound.Bell);

"DI+".SetDefaultColor(Color.GREEN);
"DI-".SetDefaultColor(Color.RED);
ADX.SetDefaultColor(Color.WHITE);
ADXAvg.SetDefaultColor(Color.YELLOW);

Lady

Can anyone help me with his? I want the indicator to plot an up or down arrow when ever the ADXAvg crosses ADX. And not a balloon but a print at the cross over location. Similar to the indicator picture below declare lower; input MACDfastLen = 10; input MACDslowLen = 30; input MACDLen = 10; input showADX_DMI = { "No", default "Yes"}; input showMACD = { "No", default "Yes"}; input invertNegMACD = { "Yes", default "No"}; input MACDHeight = 50; input MACDWidth = 3; input ADX_Avg = 3; input DMI_Len = 9; input No_Trend = 20; input Low_Trend = 45; input Strong_Trend = 60; def fastAvg = EMA2(data = close, "smoothing factor" = 2 / (1 + MACDfastLen)); def slowAvg = EMA2(data = close, "smoothing factor" = 2 / (1 + MACDslowLen)); def Value = fastAvg - slowAvg; def nextAvg = ExpAverage(data = Value, MACDLen); def HistoBar = Value - nextAvg[1]; def HiScale = HighestAll(HistoBar); def LoScale = AbsValue(LowestAll(HistoBar)); def BarScale = if HiScale > LoScale then HiScale else LoScale; plot macd_plot = If (showMACD, If( invertNegMACD, If ( HistoBar < 0, ( -1 * HistoBar * MACDHeight / BarScale ), ( HistoBar * MACDHeight / BarScale )), HistoBar * MACDHeight / BarScale), Double.NaN); macd_plot.AssignValueColor(if invertNegMACD then if HistoBar >= 0 then Color.CYAN else Color.MAGENTA else Color.CYAN); macd_plot.SetPaintingStrategy(PaintingStrategy.HISTOGRAM); macd_plot.SetLineWeight(MACDWidth); def hiDiff = high - high[1]; def loDiff = low[1] - low; def plusDM = if hiDiff > loDiff and hiDiff > 0 then hiDiff else 0; def minusDM = if loDiff > hiDiff and loDiff > 0 then loDiff else 0; def ATR = WildersAverage(TrueRange(high, close, low), DMI_Len); plot "DI+" = if showADX_DMI then 100 * WildersAverage(plusDM, DMI_Len) / ATR else Double.NaN; plot "DI-" = if showADX_DMI then 100 * WildersAverage(minusDM, DMI_Len) / ATR else Double.NaN; def DX = if ("DI+" + "DI-" > 0) then 100 * AbsValue("DI+" - "DI-") / ("DI+" + "DI-") else 0; plot ADX = if showADX_DMI then WildersAverage(DX, DMI_Len) else Double.NaN; plot ADXAvg = if showADX_DMI then ExpAverage(ADX, ADX_Avg) else Double.NaN; plot NoTrend = No_Trend; plot LowTrend = Low_Trend; plot StrngTrend = Strong_Trend; plot ArrowUp = if ADXAvg crosses above ADX then low else double.nan; ArrowUP.SetPaintingStrategy(PaintingStrategy.Arrow_UP); ArrowUP.SetLineWeight(3); ArrowUP.SetDefaultColor(Color.Green); plot ArrowDN = if ADXAvg crosses below ADX then high else double.nan; ArrowDN.SetPaintingStrategy(PaintingStrategy.Arrow_DOWN); ArrowDN.SetLineWeight(3); ArrowDN.SetDefaultColor(Color.Red); Alert(ArrowUp, " ", Alert.Bar, Sound.Chimes); Alert(ArrowDN, " ", Alert.Bar, Sound.Bell); "DI+".SetDefaultColor(Color.GREEN); "DI-".SetDefaultColor(Color.RED); ADX.SetDefaultColor(Color.WHITE); ADXAvg.SetDefaultColor(Color.YELLOW);

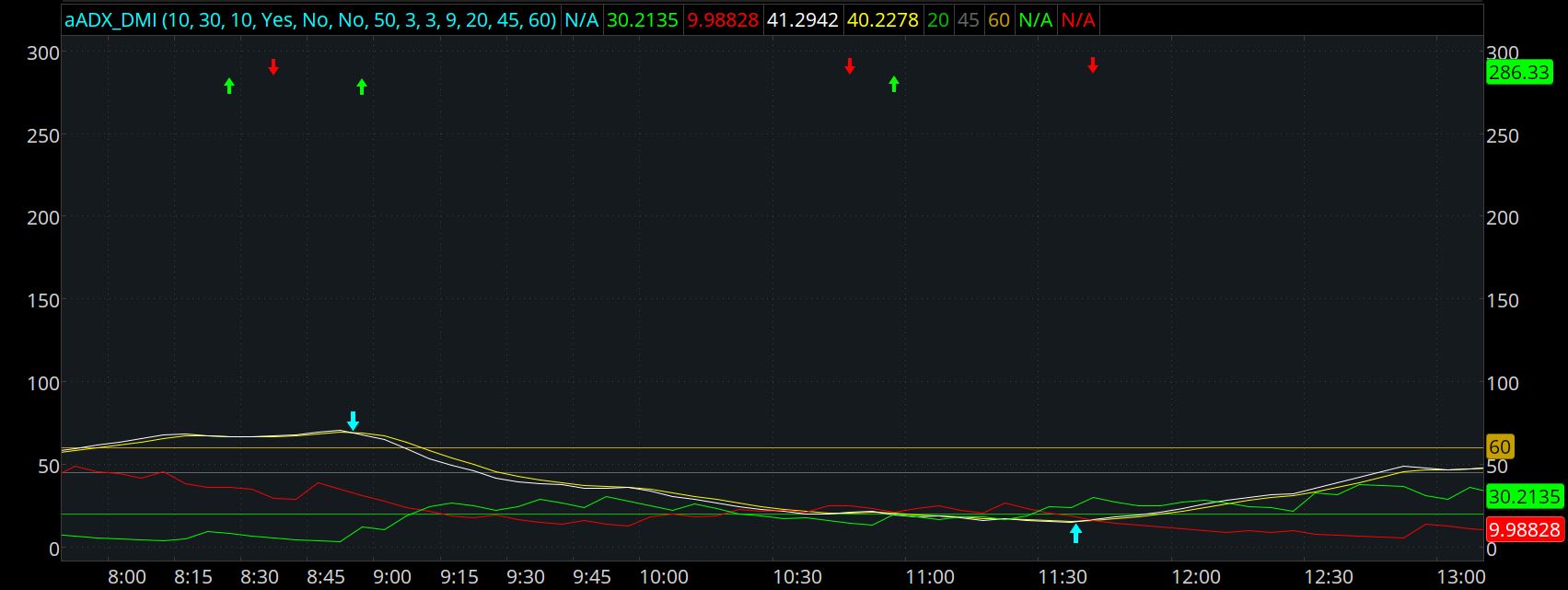

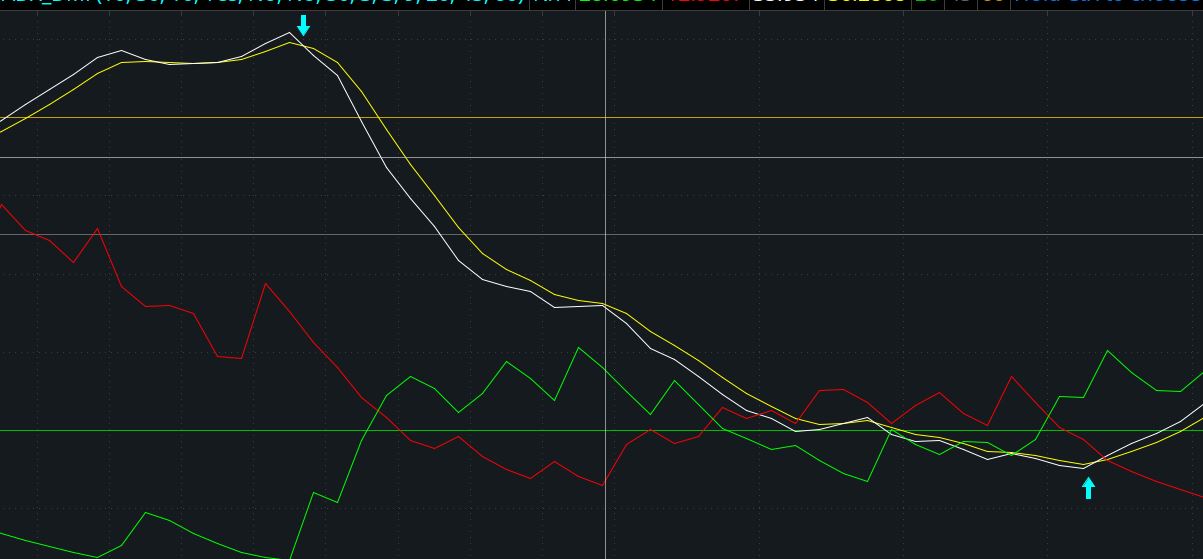

Your code is calling out the high and the low of the underlying, not of the indicator, hence why you're getting floating arrows. One option is to assign the high and low mark to an arbitrarily number (ie. overbought, oversold). The other, similar to the first attachment you have, is delete the if/then parts of the statement. It should plot at the indiciator value



Code

plot ArrowUp = if ADXAvg crosses above ADX then 0 else double.nan; ArrowUP.SetPaintingStrategy(PaintingStrategy.Arrow_UP); ArrowUP.SetLineWeight(3); ArrowUP.SetDefaultColor(Color.Green); plot ArrowDN = if ADXAvg crosses below ADX then 100 else double.nan; ArrowDN.SetPaintingStrategy(PaintingStrategy.Arrow_DOWN); ArrowDN.SetLineWeight(3); ArrowDN.SetDefaultColor(Color.Red); Alert(ArrowUp, " ", Alert.Bar, Sound.Chimes); Alert(ArrowDN, " ", Alert.Bar, Sound.Bell);

or



Code

plot ArrowUp = ADXAvg crosses above ADX; ArrowUP.SetPaintingStrategy(PaintingStrategy.Arrow_UP); ArrowUP.SetLineWeight(3); ArrowUP.SetDefaultColor(Color.Green); plot ArrowDN = ADXAvg crosses below ADX; ArrowDN.SetPaintingStrategy(PaintingStrategy.Arrow_DOWN); ArrowDN.SetLineWeight(3); ArrowDN.SetDefaultColor(Color.Red); Alert(ArrowUp, " ", Alert.Bar, Sound.Chimes); Alert(ArrowDN, " ", Alert.Bar, Sound.Bell);

https://tos.mx/SV5YSHs

https://tos.mx/BeZ0Ywz
