Good afternoon. You have done a great job with the PriceActionSwing indicator, thank you very much. But I can not see the display of divergence lines on the chart. I have uncommented the lines that you spoke, compiled, there are no errors in the log file. I have 3 hours to do all sorts of dances with the settings all to no avail. Help please get work done Priceactionswingpro with GomCD. Thank you.

Its from my script:

#region GomCD
// Uncomment the next lines to use Gomi's Cumulative Delta ================================
private DataSeries gomCdAllDeltaClose;
public enum ShowGomCD
{
AbsoluteCD,
AbsoluteCD_And_SwingCD,
False,
SwingCD,
SwingCD_And_AbsoluteCD,
}
private ShowGomCD showGomCD = ShowGomCD.SwingCD_And_AbsoluteCD;
private int textOffsetGomCd = 60;
private GomCD gomCdAll;
private GomFilterModeType gomCdVolumeFilterSizeMode = GomFilterModeType.None;
private GomCDCalculationModeType gomCdCalcMode = GomCDCalculationModeType.BidAsk;
private int gomCdVolumeFilterSize = 1;
private int gomCdAllSwingLowValue = 0;
private int gomCdAllSwingHighValue = 0;
private int curHighGomCdAll = 0;
private int curLowGomCdAll = 0;
private int lastHighGomCdAll = 0;
private int lastLowGomCdAll = 0;
/// <summary>
/// Indicates if the developing cumulative delta since the last fix swing is printed in
/// the right bottem corner.
/// </summary>
private bool gomCDCurrent = true;
// Uncomment till here ====================================================================
#endregion

Silvester17

do you have the gom recorder installed? you need that to use the gom cd indicator. but that leads to another problem. in order to download the gom recorder, you have to be an elite member but you're not. so I'm afraid nobody can/should help. sorry about that

Yes, I have installed and enabled Gom Recorder, but I still do not see divergences on the charts

Silvester17

do you have the correct version of the gom recorder? you need this one: []https://nexusfi.com/elite-circle/6802-gomrecorder-2-a-103.html#post292045[/url]

I have version 7.0.1000.14.

what version do I need?

Silvester17

I was referring to the gom recorder and not the ninja trader version. just follow my link and you'll see what you need.

I bought an elite subscription, downloaded and installed a new GOT recorder, but it still did not solve my problem((

Silvester17

excellent! now remember one thing. when using bid/ask, you don't have any historical data. you need to record first. as a little test, you could use up down tick instead of bid/ask. that way you should be able to see the divergences. this is up/down tick with continuation. also remember for using up/down you need ninja tick file. and in order to do that, you need a tick based (tick, volume, range etc) chart somewhere to load the tick data: in case you still having problems, I attached the pas pro with gom cd enabled

Thanks a lot !!! With your file the problem is no more. I am very grateful for your help! And now I will enjoy the elite membership!

I have been using this great indicator for a while now but fail to fully understand a couple of things. I am hoping someone can provide an explanation.

1. This is the info provided on the instruction page, but I need further clarification please:
Swing type:
"Represents the swing type. In the "Standard" swing type a new swing is found when price is above or below the high or low of the last N bars and N = Swing size."
Does the above calc include inside bars? I'm guessing it does? It seems you can only exclude inside bars with the Gann style?
If it is as written, with the swing size set to 3, I take it to mean in an uptrend following a bar making a new high, if & once 3 consecutive bars have made lower lows, (regardless of the highs and closes), then when price ticks below the third completed bar is when the down swing will be validated and therefore print. (Is this correct)?

2. With the swing type set to standard, and the swing visualisation set to ZigZagVolume, what is the criteria that changes the swing colours. It seems obvious that it is volume related? The zig zag is not always red when decending and not always green when accending. At present I have a chart that has made a leg up (green), followed by a retracement (green), followed by another leg up (now red), another retracement (red), yet another leg up (red).
Why is did the zig zag turn red and still made higher highs and a higher low?
I really would like to understand the way the zig zag is coloured by using the above settings.

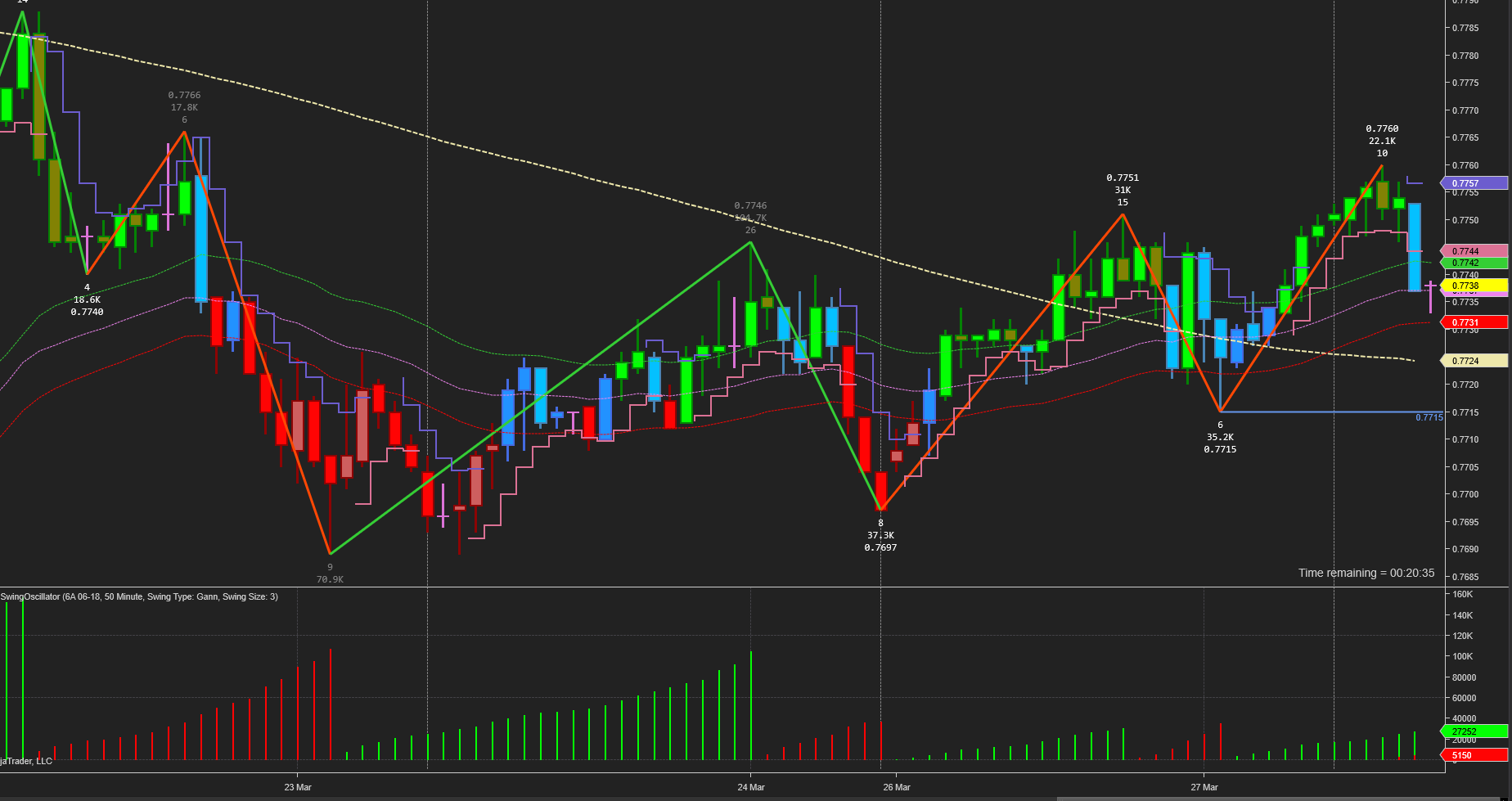

I have attached a screen shot.

Thanks for your help.
Ken.

I would like to have a small modification done to this indicator and am unable to do it myself, is there someone who would like to give it a go? I would be willing to pay if necessary.

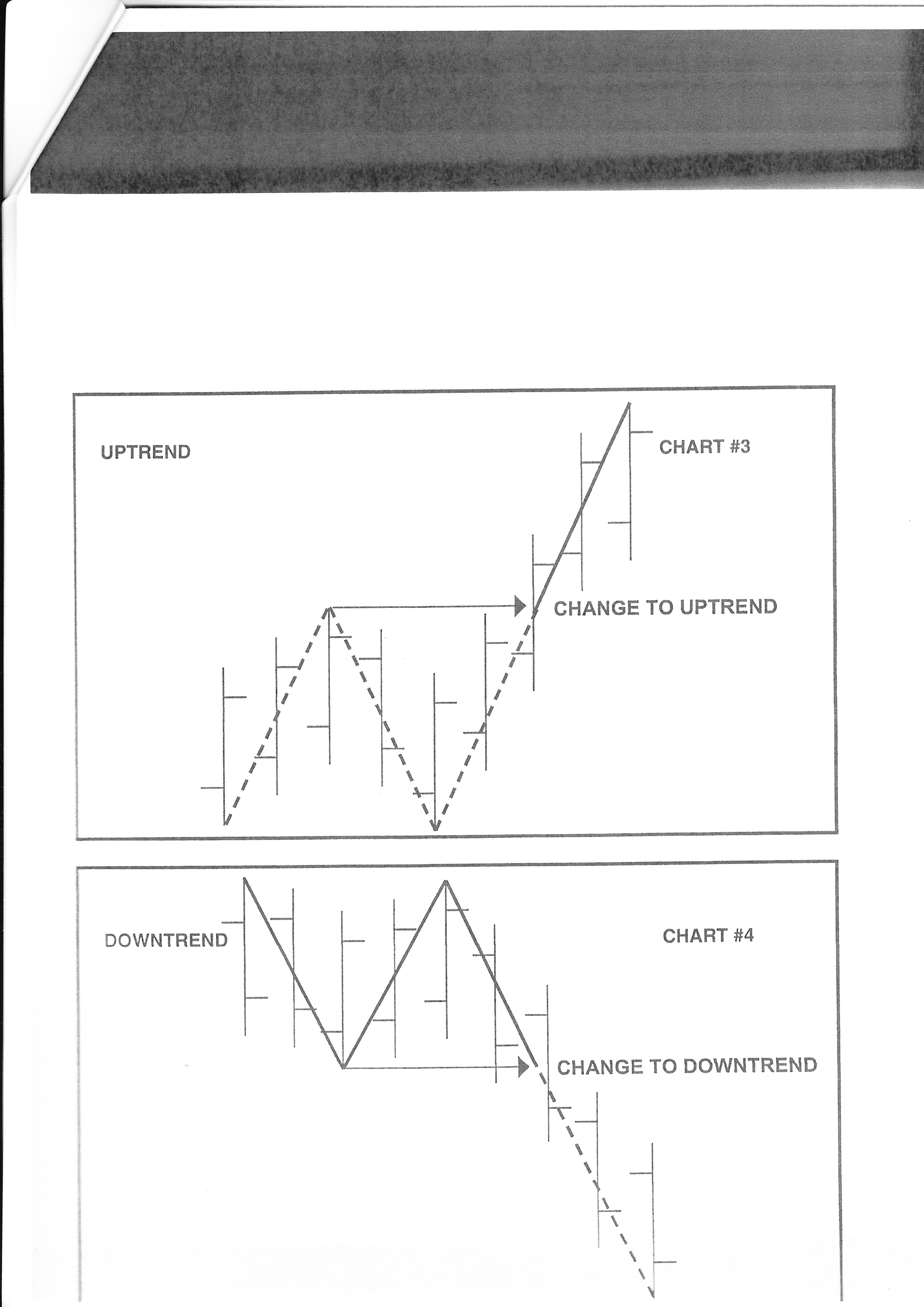

I want the zig zag to change with the trend as per the attached, from Robert Krausz's book WD Gann, Treasure discovered.

I wonder if it could be possible to display divergences between price and cumulative delta by using PAS and NT Order Flow Cumulative Delta indicator?

thank you

emun

I wonder if it could be possible to display divergences between price and cumulative delta by using PAS and NT Order Flow Cumulative Delta indicator? thank you

Could you post a link or the indicator itself that you are talking about ? I mean the NT Order Flow Cumulative Delta indicator...NT7 or NT8???

pepbosch

Could you post a link or the indicator itself that you are talking about ? I mean the NT Order Flow Cumulative Delta indicator...NT7 or NT8???

Hello pepbosh,

it is NTīs indicator called Order Flow Cumulative Delta. It is available for NT8 lifetime licence holders (see info here: https://forum.ninjatrader.com/showthread.php?t=107060). Although the script of the indicator itself is not accessible, it is possible to call it. The way how to do it is described here: https://ninjatrader.com/support/helpGuides/nt8/en-us/order_flow_cumulative_delta2.htm
