Multicharts + InteractiveBrokers: Allocation profiles


Discussion in MultiCharts

Updated
    1. trending_up 3,318 views
    2. thumb_up 4 thanks given
    3. group 4 followers
    1. forum 3 posts
    2. attach_file 3 attachments





Search this Thread
  #1 (permalink)
nivi
Madrid, Spain

Posts: 30 since Feb 2017
Thanks Given: 4
Thanks Received: 6

I am currently testing profiles to assign different weights in a F&F account interactivebrokers.

When I use the default configuration (Automatic Allocation) all is ok. If I place 4 positions in 2 accounts, then they balance to 50%. And is possible to operate individually in each of the accounts.

But then I use a configured profile, and the weighting is done correctly.

The problem appears because then it is not possible to operate individually in each account.

Can anybody help me please?


Attached Thumbnails
Click image for larger version

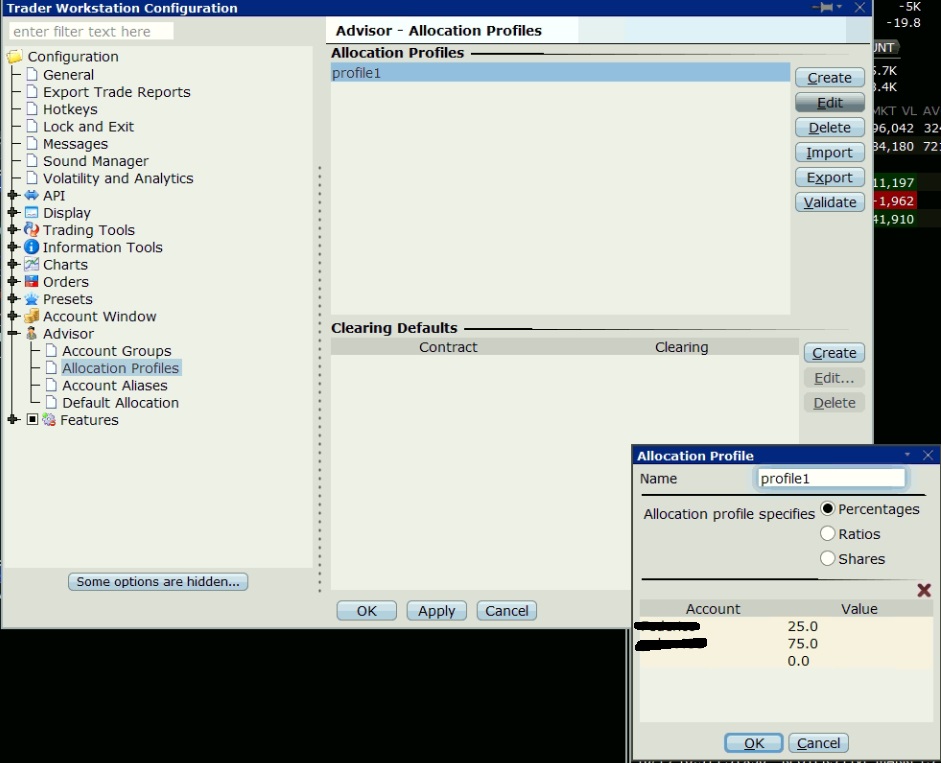

Name:	TWS profile configuration.jpg
Views:	343
Size:	129.9 KB
ID:	257530   Click image for larger version

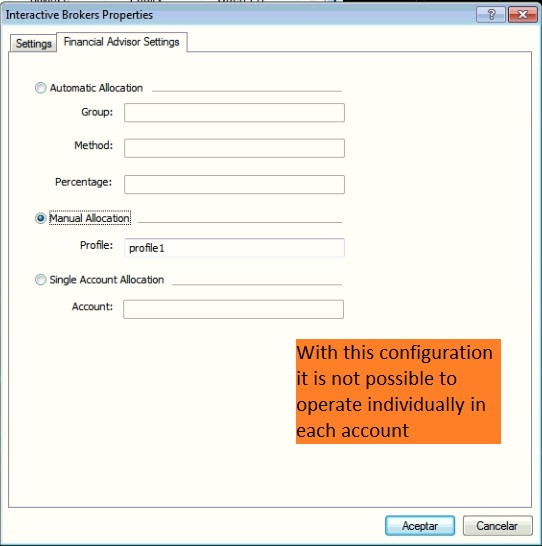

Name:	profile1.jpg
Views:	310
Size:	55.4 KB
ID:	257531   Click image for larger version

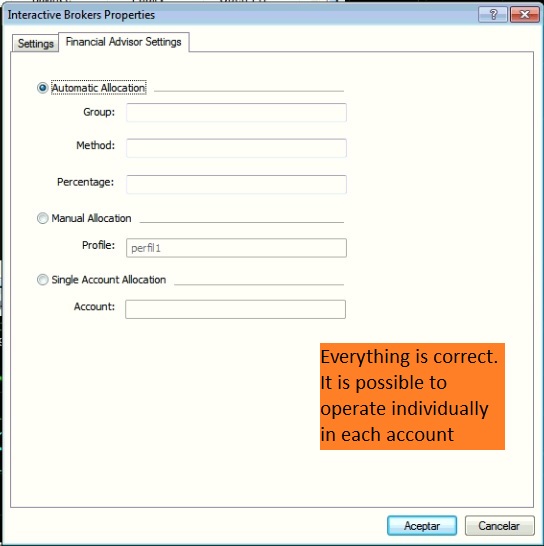

Name:	automatic allocation.jpg
Views:	333
Size:	53.4 KB
ID:	257532
Reply With Quote

Can you help answer these questions
from other members on NexusFi?
Wood Mackenzie Drops $200 Oil Forecast -- Airspace Expir …
Prediction Markets & Event Contracts
Orban Crashes to 21pct on Record Turnout -- McIlroy Drop …
Prediction Markets & Event Contracts
UCL Final Kicks Off at Noon ET: PSG at 56.5% as Iran May …
Prediction Markets & Event Contracts
Hormuz Normalization Collapses to 19.5% -- Iran Regime F …
Prediction Markets & Event Contracts
Peace Deal Forward Curve: May 22%, June 51%, December 81 …
Prediction Markets & Event Contracts

Best Threads (Most Thanked)
in the last 7 days on NexusFi
The Pivot Point 113.6³ — Navigating the Prediction of …
26 thanks
Sober Journey With S&P
17 thanks
The Confluence Meter: A Multi-Layered Signal Framework B …
11 thanks
NT8 color choices
10 thanks
Volume Indicators
7 thanks
  #2 (permalink)
nivi
Madrid, Spain

Posts: 30 since Feb 2017
Thanks Given: 4
Thanks Received: 6

After several tests I have managed to solve it.

Go to Multicharts, File, Broker Profiles, Manage Broker Profile, select Interactive Brokers, Edit, Financial Advisor Settings, select Automatic Allocation.

This is how you choose how to send manual operations.

Now, on the other hand:

Multicharts, select a chart with automatic system, then clic window, format, strategy properties, auto trading, select broker plug-in, interactiveBrokers, settings, financial advisor setrtings, manual allocation, profile, and write the name of the desired profile, for example PROFILE1.

This is how we want this particular automatic system to behave.

Remember that it is possible to create different profiles and assign them individually for each automatic system

Now missing to configure the profile in interactive brokers.

Open TWS, file, global configuration, advisor, allocation profiles, and we can create and edit profiles.
With TWS we can create, edit and make use of these profiles. This data is stored in the central server of IB.

https://www.interactivebrokers.com/en/software/tws/twsguide.htm

TWS API v9.72+: Financial Advisors

So, if we use gateway now, we can use these profiles with multicharts.

There is only one small problem, with gateway it is not possible to create or edit management profiles.


Reply With Quote
  #3 (permalink)
 gero
milano

Experience: Intermediate
Platform: tradestation
Posts: 4 since May 2010
Thanks Given: 10
Thanks Received: 1


Many thanks, you have explained it better than the MC manual!



nivi View Post
After several tests I have managed to solve it.

Go to Multicharts, File, Broker Profiles, Manage Broker Profile, select Interactive Brokers, Edit, Financial Advisor Settings, select Automatic Allocation.

This is how you choose how to send manual operations.

Now, on the other hand:

Multicharts, select a chart with automatic system, then clic window, format, strategy properties, auto trading, select broker plug-in, interactiveBrokers, settings, financial advisor setrtings, manual allocation, profile, and write the name of the desired profile, for example PROFILE1.

This is how we want this particular automatic system to behave.

Remember that it is possible to create different profiles and assign them individually for each automatic system

Now missing to configure the profile in interactive brokers.

Open TWS, file, global configuration, advisor, allocation profiles, and we can create and edit profiles.
With TWS we can create, edit and make use of these profiles. This data is stored in the central server of IB.

https://www.interactivebrokers.com/en/software/tws/twsguide.htm

TWS API v9.72+: Financial Advisors

So, if we use gateway now, we can use these profiles with multicharts.

There is only one small problem, with gateway it is not possible to create or edit management profiles.


Reply With Quote
  #4 (permalink)
Horsecap
Dubai + UAE

Posts: 1 since Feb 2020
Thanks Given: 0
Thanks Received: 0

Hello Nivi,

I would like to speak to you in private about F&F IB account. My e m a i l is antonio . rivas @ live . co . uk


Reply With Quote
