thanks for letting me know Cory, as I do not use ToS I assumed this was a correct version as per that thread. I would use TC2000 but they only focus only on the US markets, but I also need Australian market too. Appreciate your effort, thanks.

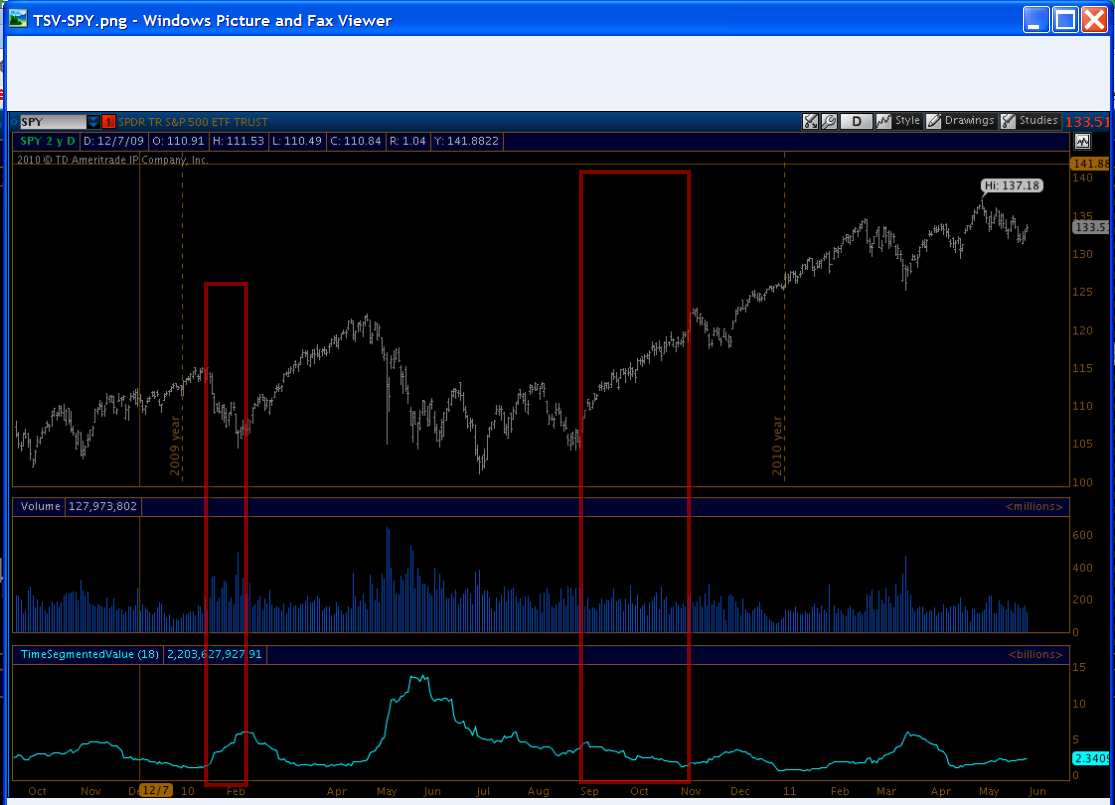

this version plots above and below the y axis. In essence the function is similar but I am unable to confirm as it is a different instrument, with potentially different volume data. The original source with comments for this was FXCodeBase.COM: Forex Chart Indicators and Development • View topic - Time Segmented Volume
and the lua code as follows (it uses candles instead of linear output):
-- Indicator profile initialization routine
-- Defines indicator profile properties and indicator parameters
-- TODO: Add minimal and maximal value of numeric parameters and default color of the streams
function Init()
indicator:name("Time Segmented Volume");
indicator:description("Time Segmented Volume");
indicator:requiredSource(core.Bar);
indicator:type(core.Oscillator);
indicator.parameters:addGroup("Calculation");
indicator.parameters:addInteger("Period", "Period", "Period", 14);
indicator.parameters:addGroup("Style");
indicator.parameters:addColor("Up_color", "Positive TSV Color", "Color of TSV", core.rgb(0, 255, 0));
indicator.parameters:addColor("Dn_color", "Negativ TSV Color", "Color of TSV", core.rgb( 255,0 , 0));
end
-- Indicator instance initialization routine
-- Processes indicator parameters and creates output streams
-- TODO: Refine the first period calculation for each of the output streams.
-- TODO: Calculate all constants, create instances all subsequent indicators and load all required libraries
-- Parameters block
local Period;
local first;
local source = nil;
local temp;
-- Streams block
local TSV = nil;
-- Routine
function Prepare(nameOnly)
Period = instance.parameters.Period;
source = instance.source;
assert(source:supportsVolume(), "The source must have volume");
first = source:first()+Period;
local name = profile:id() .. "(" .. source:name() .. ", " .. tostring(Period) .. ")";
instance:name(name);
temp = instance:addInternalStream(0, 0);
if (not (nameOnly)) then
TSV = instance:addStream("TSV", core.Bar, name, "TSV", instance.parameters.Up_color, first);
end
end
-- Indicator calculation routine
-- TODO: Add your code for calculation output values
function Update(period)
if source.close[period]> source.close[period-1] then
temp[period]= source.volume[period] * (source.close[period]- source.close[period-1]);
elseif source.close[period]< source.close[period-1] then
temp[period]= (-1) * source.volume[period] * (source.close[period-1]-source.close[period] );
else
temp[period]=0;
end
if period < first then
return;
end
TSV[period] = mathex.sum(temp, period-Period+1, period);
if TSV[period] > TSV[period-1] then
TSV:setColor(period, instance.parameters.Up_color);
else
TSV:setColor(period, instance.parameters.Dn_color);
end
end

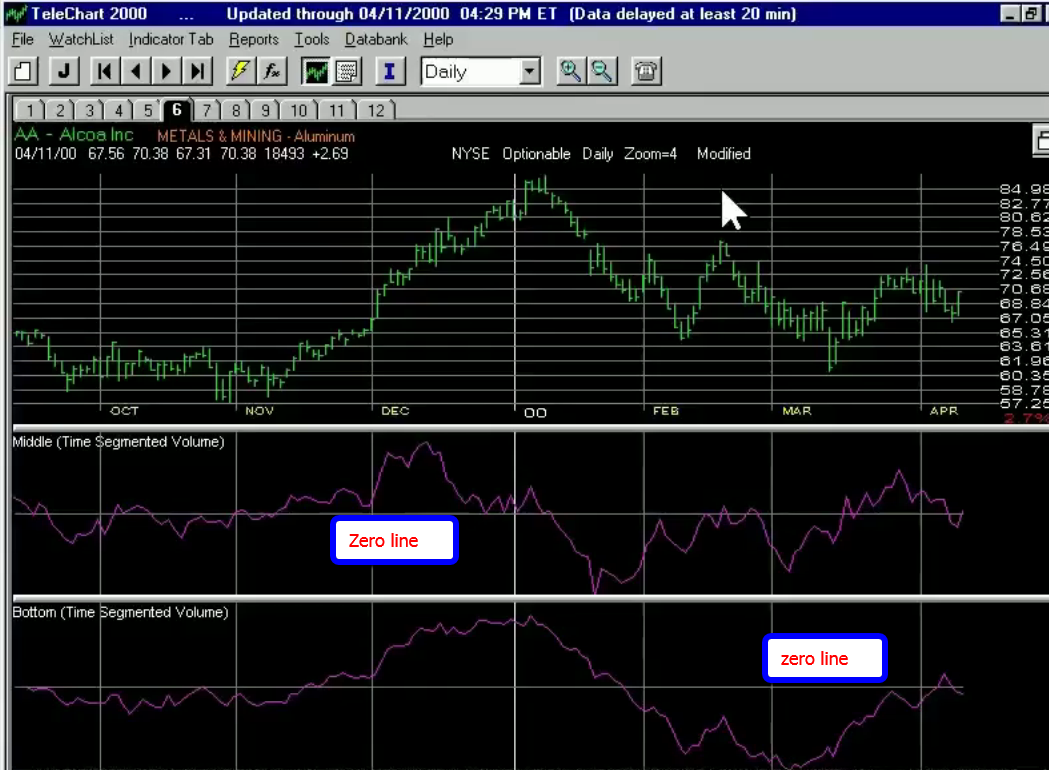

This is a TSV approximation I've used for some time in my signal generation code with Telechart. I find that it is very true to Worden's TSV line form.
The Telechart PCF is TSV = V*(C-C1)/((H-L+ABS(H-C1)+ABS(C1-L)+0.0000001)/2).
