Hi,

I have been using this NinjaTrader 8 indicator on a Renko Chart, since Renko is not time based, it gives a more accurate Fibonacci Retracement on swings. I would like to use the same indicator on a tick chart by adding the same Renko Data Series on the indicator.

I have already added the Renko Data Series to the indicator and it compiles fine. I'm not sure how/where to add the (BarsArray[1] to the plot to get the indicator to work off the Renko Data Series on a tick chart? I was hoping someone would help me to make the data series work on this indicator?

thanks,
David

Sorry about the last deleted post. I accidentally submitted before I was done and deleted it. Here's the complete response.


I believe this is what you need to do at least to get started, but (disclaimer) my answer is merely based on glancing at your code. I didn't actually do these steps and test that they work.

As you start tweaking, it may become apparent that you need other changes. So take these suggestions as starting points and not the exact changes you need to make. You'll need to do your own due diligence to get to a complete solution.

In State.Configure, you have two instances of your class FibonacciST. You need to replace "this" with "BarsArray[1] so it operates on the secondary series.

Also, in a multi-series script, under OnBarUpdate, you need to be aware of which BarsInProgress you are operating on. I would recommend looking at the Ninja help guide for details, but you usually need something like this.

if( BarsInProgress == 0 )
{
// Do something with primary series -- BarsArray[0]
}
if( BarsInProgress == 1 )
{
// Do something with secondary series -- BarsArray[1]
// This is where you need to do your processing
}

Also be aware that things like CurrentBar, Open[], High[], Low[], Close[], etc change meaning depending on which BarsInProgress you are in.
In BIP0, they point to CurrentBars[0], Opens[0][], Highs[0][], etc.
In BIP1, they point to CurrentBars[1], Opens[1][], Highs[1][], etc.

I didn't notice this in your code, but if you need to create additional custom series to hold intermediate data for processing your logic based on BarsArray[1], you have to make sure that those custom series have the same number of elements as the series you're working with (ie; BarsARray[1]). This is generally done in State.DataLoaded.

I hope this gives you enough to get started on.

If you have other specific questions, I'll be happy to answer if I know the answer.

Good luck.

fiddlinground

Hi, I have been using this NinjaTrader 8 indicator on a Renko Chart, since Renko is not time based, it gives a more accurate Fibonacci Retracement on swings. I would like to use the same indicator on a tick chart by adding the same Renko Data Series on the indicator. I have already added the Renko Data Series to the indicator and it compiles fine. I'm not sure how/where to add the (BarsArray[1] to the plot to get the indicator to work off the Renko Data Series on a tick chart? I was hoping someone would help me to make the data series work on this indicator? thanks, David

In OnBarUpdate() , add if (BarsInProgress == 0) {... around you current code then add if (BarsInProgress == 1) {} to handle the logic for the new data series.

Since your plots will most likely be for Series 0, you may have to set variables for series 1 then use them to plot whatever you wish when processing series 0.

sg72

Sorry about the last deleted post. I accidentally submitted before I was done and deleted it. Here's the complete response. I believe this is what you need to do at least to get started, but (disclaimer) my answer is merely based on glancing at your code. I didn't actually do these steps and test that they work. As you start tweaking, it may become apparent that you need other changes. So take these suggestions as starting points and not the exact changes you need to make. You'll need to do your own due diligence to get to a complete solution. In State.Configure, you have two instances of your class FibonacciST. You need to replace "this" with "BarsArray[1] so it operates on the secondary series. Also, in a multi-series script, under OnBarUpdate, you need to be aware of which BarsInProgress you are operating on. I would recommend looking at the Ninja help guide for details, but you usually need something like this. if( BarsInProgress == 0 ) { // Do something with primary series -- BarsArray[0] } if( BarsInProgress == 1 ) { // Do something with secondary series -- BarsArray[1] // This is where you need to do your processing } Also be aware that things like CurrentBar, Open[], High[], Low[], Close[], etc change meaning depending on which BarsInProgress you are in. In BIP0, they point to CurrentBars[0], Opens[0][], Highs[0][], etc. In BIP1, they point to CurrentBars[1], Opens[1][], Highs[1][], etc. I didn't notice this in your code, but if you need to create additional custom series to hold intermediate data for processing your logic based on BarsArray[1], you have to make sure that those custom series have the same number of elements as the series you're working with (ie; BarsARray[1]). This is generally done in State.DataLoaded. I hope this gives you enough to get started on. If you have other specific questions, I'll be happy to answer if I know the answer. Good luck.

Hi,

I tried adding the BarsArray[1] to the FibonacciST without success.

I was hoping someone else would do the edits for me to add this data series? It is a little above my coding experience.

thanks,
David

fiddlinground

Hi, I tried adding the BarsArray[1] to the FibonacciST without success. I was hoping someone else would do the edits for me to add this data series? It is a little above my coding experience. thanks, David

Hi

I installed you indicator in Renko Bars using the BAR type you used.
But nothing is plotted.....

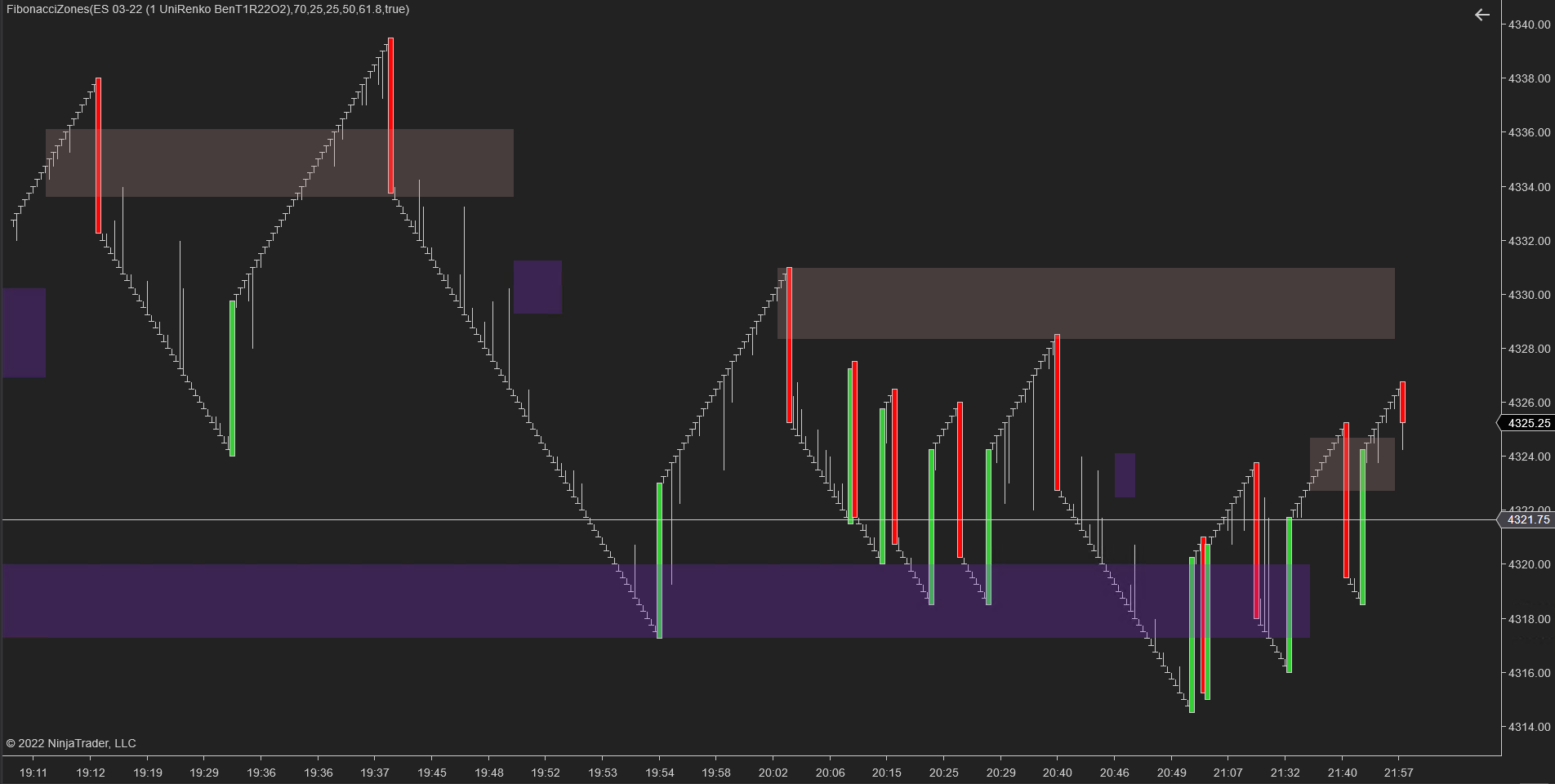

After installing the zip and adding indicator to chart the chart looks as below





Can you help to fix this

thanks

bmaran

Hi I installed you indicator in Renko Bars using the BAR type you used. But nothing is plotted..... After installing the zip and adding indicator to chart the chart looks as below Can you help to fix this thanks

That look's correct for the UniRenkoBen bars? Is that what you are trying to use?

fiddlinground

That look's correct for the UniRenkoBen bars? Is that what you are trying to use?

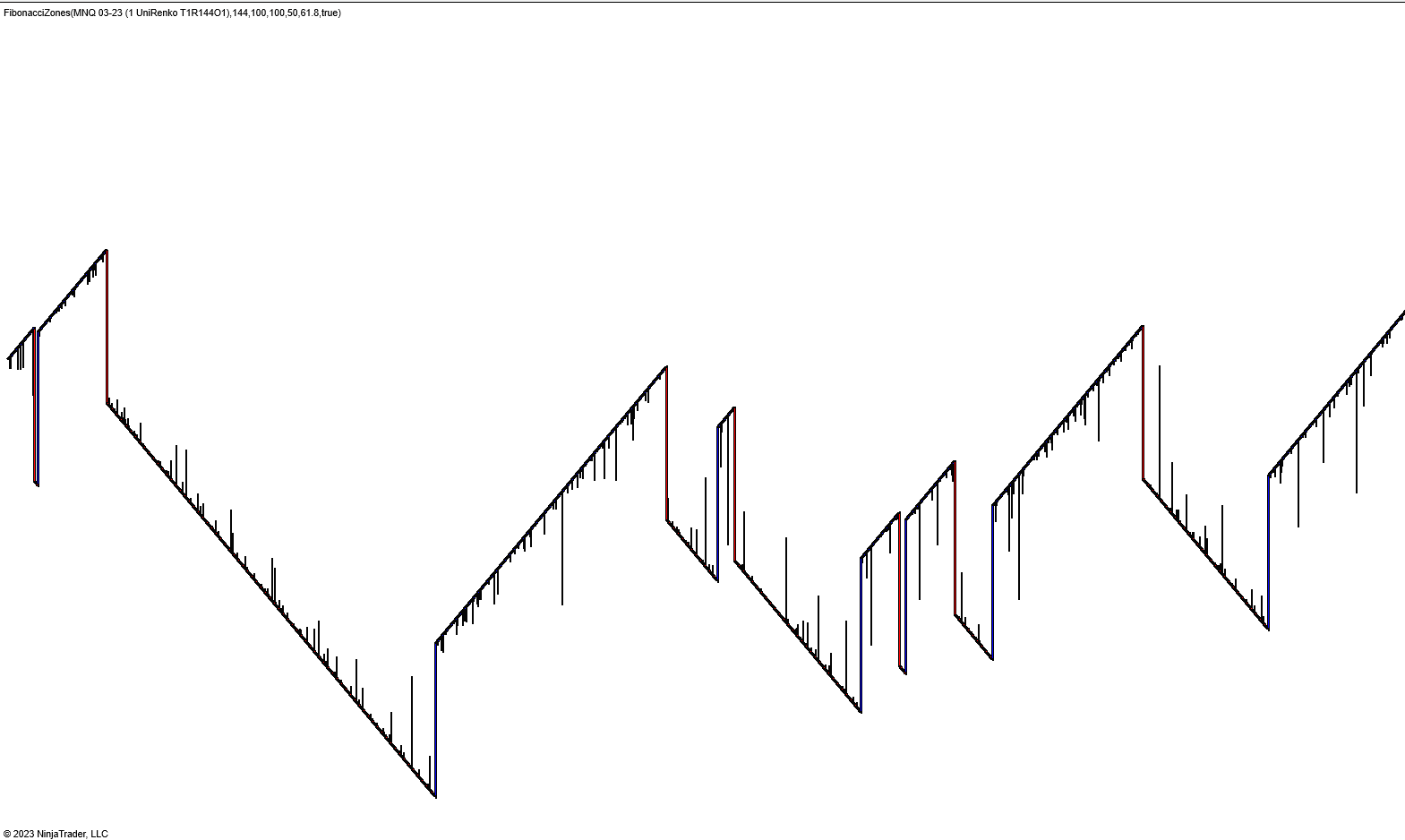

I plotted renko chart as indicated by your diagram
Installed the indicator fib zones.

The added fib zone to the chart.

But I donot see anything plotted (Fib zones) in the charts


thanks
maran

Cam you give the renko bar settins.

I am using renko bars using your data series only. but for me np fib zones plotted
